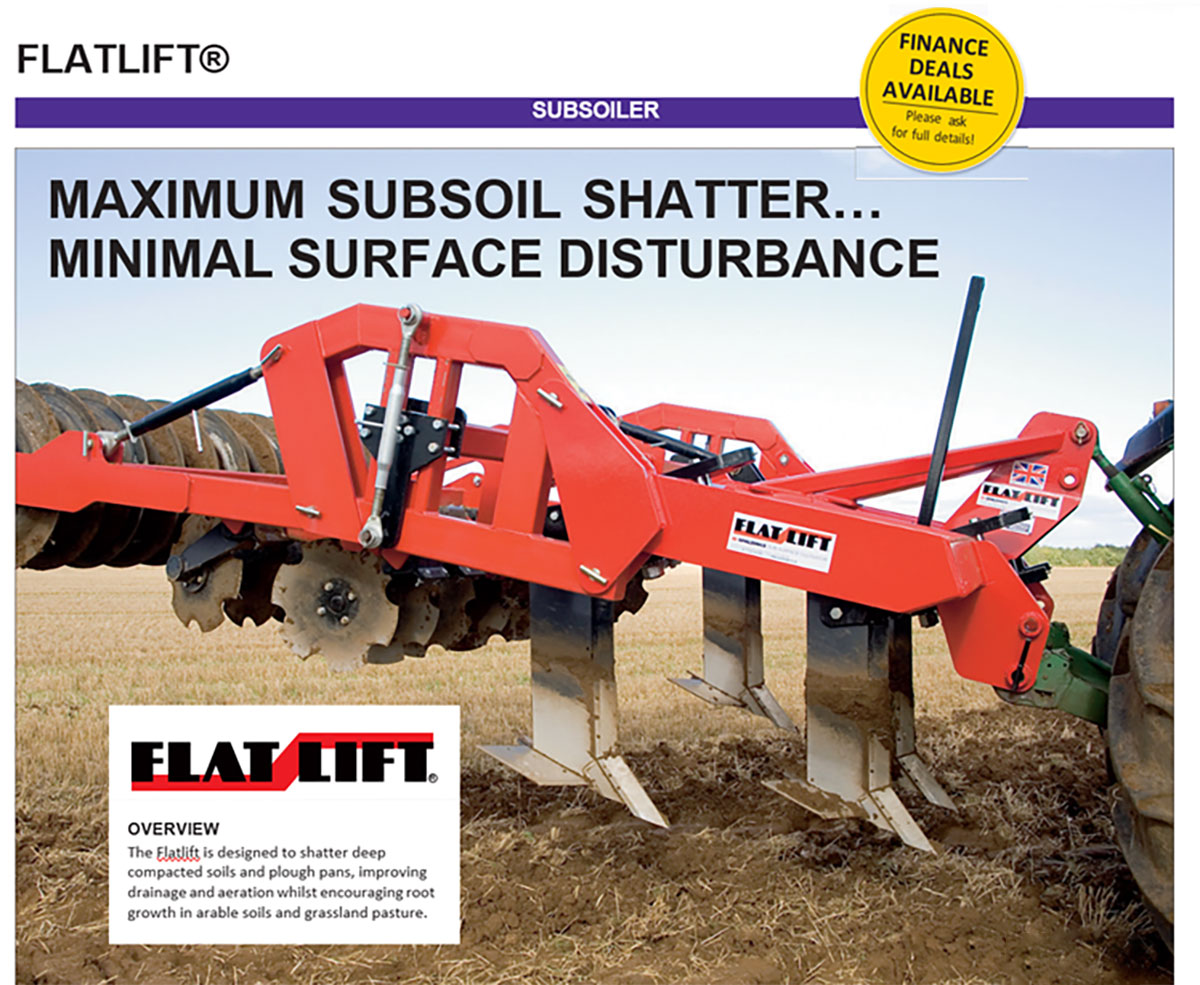

MAXIMUM SUBSOIL SHATTER

Each leg has a unique swivel hinge, designed to reduce draft and reduce side stress on the leg whilst reducing shear bolt breakages. The leg has a unique knife cutting edge design to minimise topsoil disturbance. Points and shin pieces are secured with roll pins to allow quick and easy replacement. The heavy duty angled wings offer maximum shatter of compacted soils without bringing subsoil to the surface.

MOISTURE CONTROL

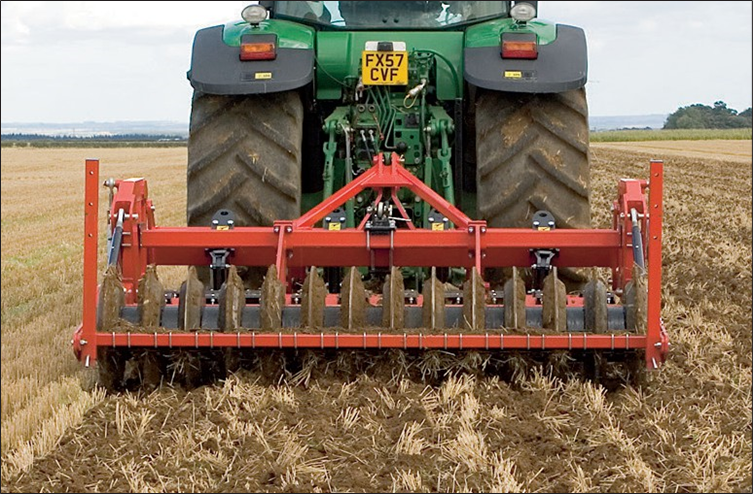

The packer roller compacts the ground to preserve moisture and also acts as the depth control for the Flatlift. Packer rollers are supplied as standard with fully adjustable scrapers and turnbuckles for depth adjustment. Each version can be retro-fitted with hydraulic depth control kits. Available as a spiked roller or larger diameter press ring roller to suit all soil conditions.

HEAVY DUTY FRAMES

Available in two frame widths, 2.85 and 3.5 metre versions it can be supplied with either 3, 4 or 5 legs. Both versions have heavy duty frames constructed with 10mm box section and have a five year frame warranty. The 2.85 and 3.5 metre machines are supplied with category 3 linkage as standard. All linkage holes are bushed on both sides to eliminate hole elongation.

GRASSLAND AERATOR

Ideal for grassland and pasture management, the Flatlift’s aerator effect breaks up compaction, restores drainage and promotes air interchange in the grass root zone. Optional grass discs slit the surface of the grass allowing easy entry for the legs, minimising sward damage and surface disturbance

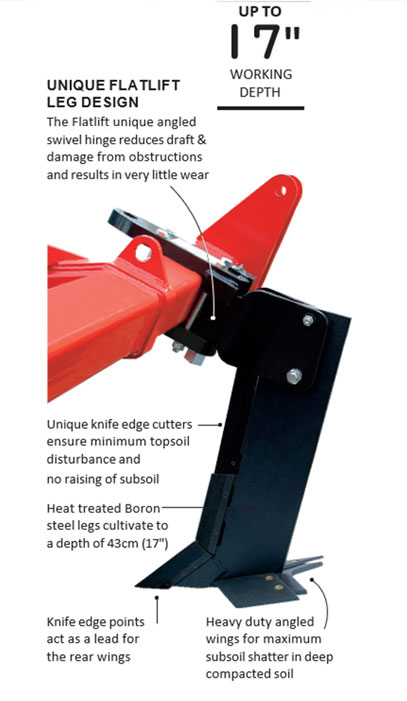

UNIQUE FLATLIFT LEG DESIGN

The Flatlift unique angled swivel hinge reduces draft & damage from obstructions and results in very little wear
