Air Jack Stand 10,000kg

Product Code: 97978
OEM Code : AJS10000
Pack quantity : 1
Link copied!
Out of stock
More stock expected on 25/6/2025

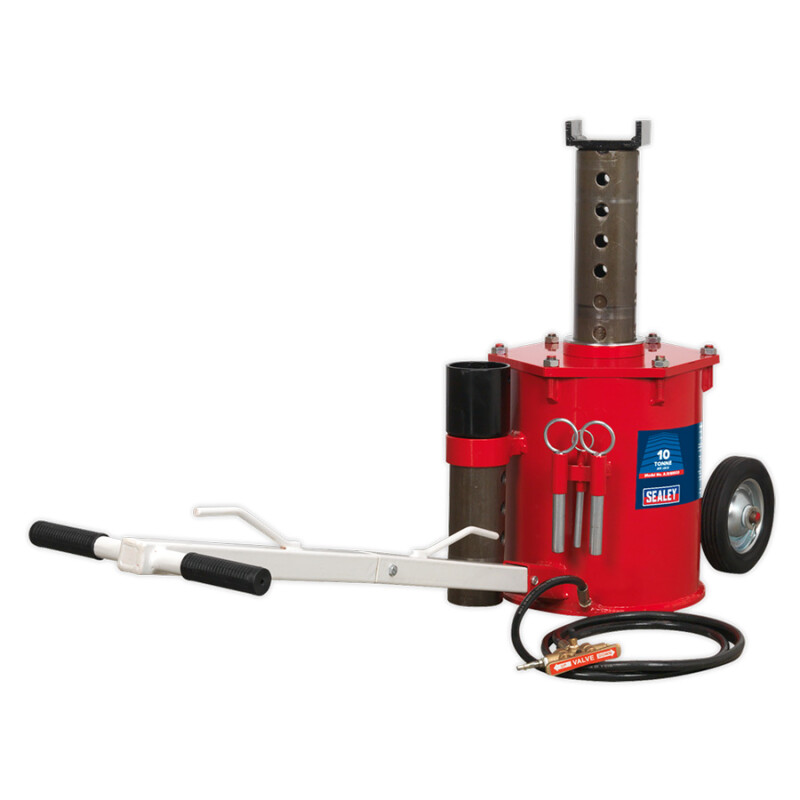

10 Tonne Air Jack Stand

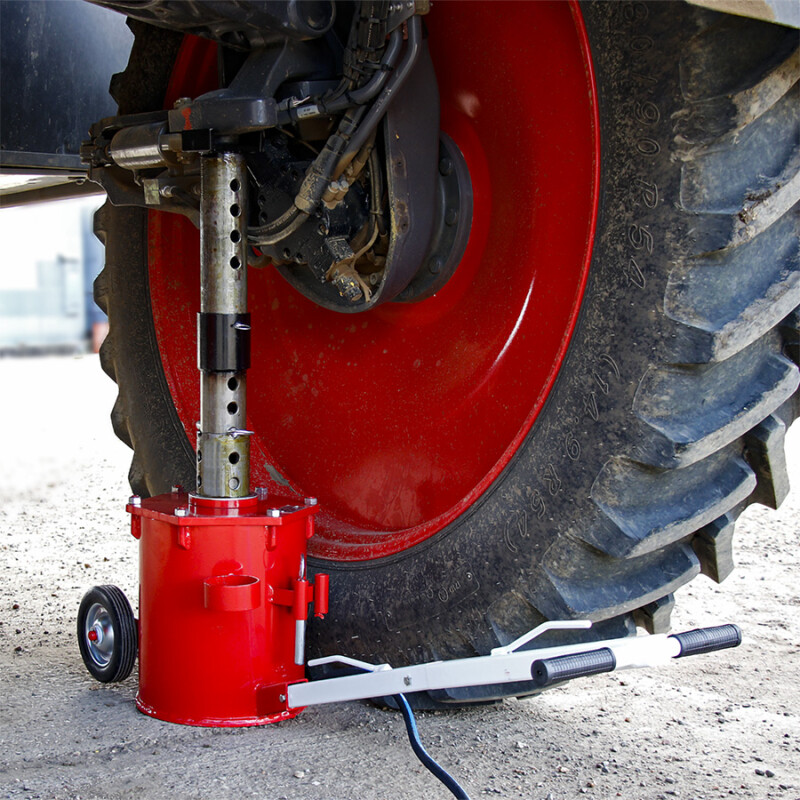

Extremely versatile air operated jack stand rated to lift and support up to 10,000kg. The wide lift height range means that the one jack is capable of lifting and safely supporting the majority of machinery and equipment on the farm from front axles of small tractors to large high clearance self propelled sprayers.

  • Ideal for heavy plant, tractors and commercial vehicles

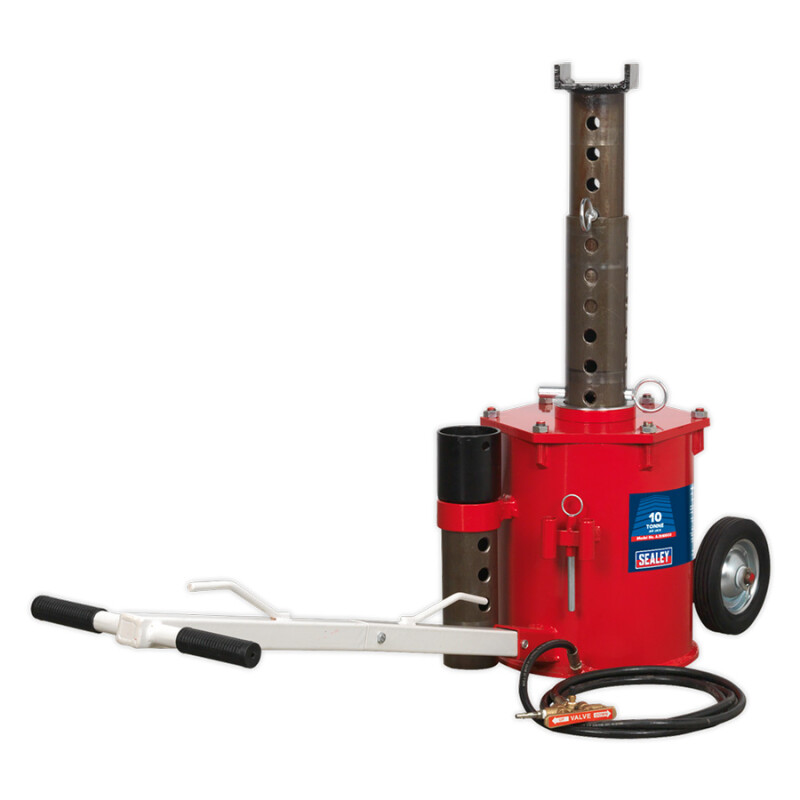

  • Multiple lifting and locking positions achieved using extension tube with multi-position pin support
  • Removable 2-piece handle aids easy storage
  • Requires 200psi of air pressure to reach optimum performance
Note: This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Capacity: 10 Tonne
Minimum saddle height: 447mm (17 1/2")
Maximum height: 1480mm (58")
Extensions: 561mm
Piston stroke: 292mm
Air pressure: 120psi min.
Working pressure: 200psi max.
Lifting capacity: 6,000 – 10,000 kg
Weight: 80kg

AJS10000
