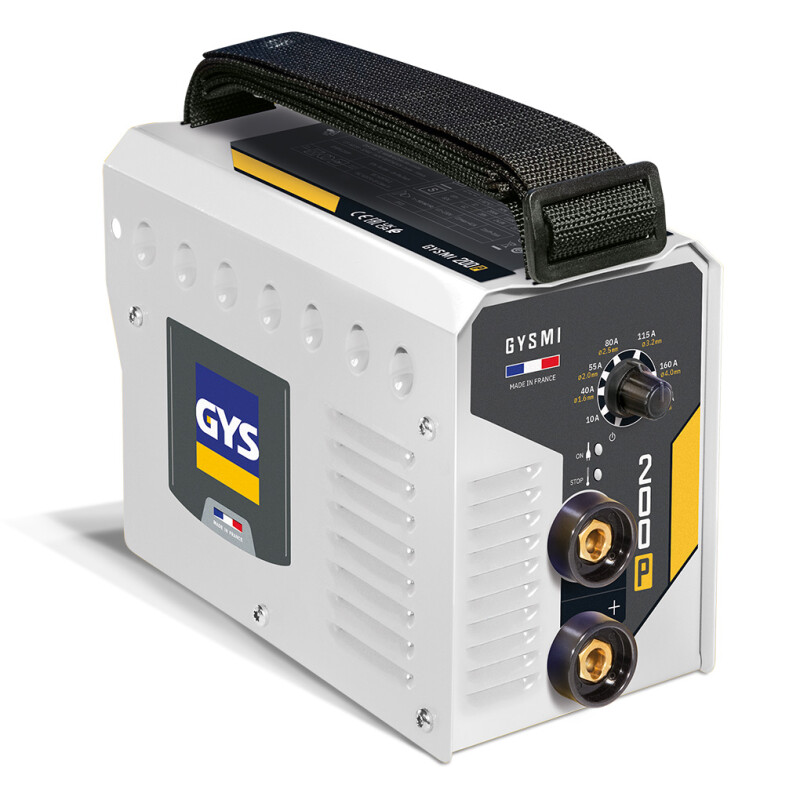

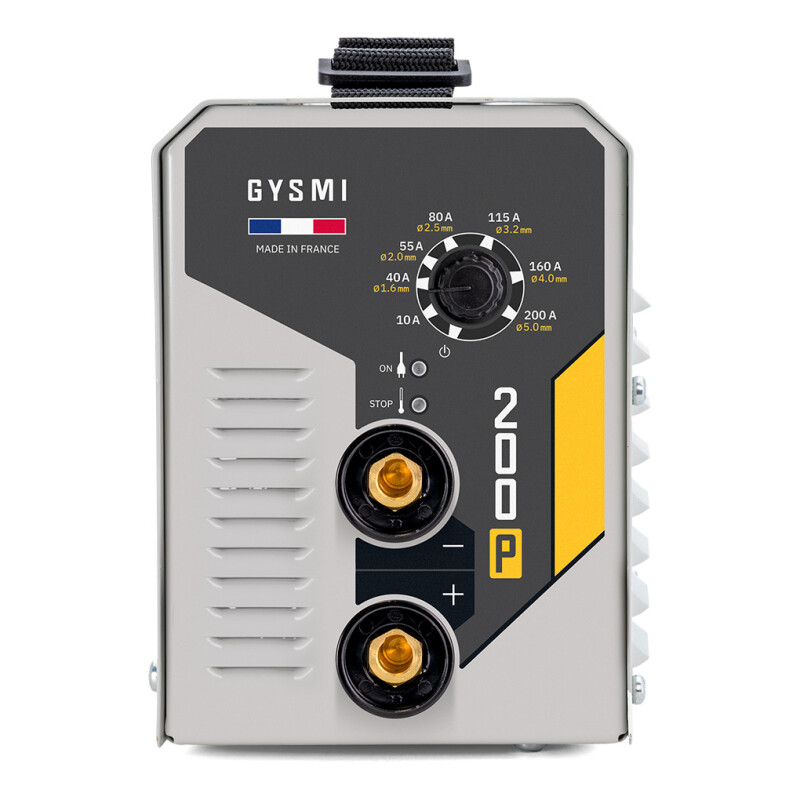

GYSMI 200P 200 Amp Arc Welding Inverter c/w Accessories

Portable and compact 200 amp arc welding inverter, weighing just 5kg. Capable of welding 3.2mm rods from a 13 amp supply. Features revolutionary arc dynamic, can be used with all types of electrodes: rutile, basic, stainless steel, cast iron in direct current. TIG capable (scratch start), requires optional TIG torch (17110).

• MMA Features:
• Immediate start thanks to its very high no-load voltage
• Constant welding power - Very smooth welding due to the direct current
• Not sensitive to supply current fluctuations or to the arc length
• Very good penetration and perfect arc stability
• Suitable for use with voltage stable output generators (min. 7.5Kva)

HOT START : Increased power at start.
ANTI STICKING : Prevents the electrode sticking.
ARC FORCE : Instantaneous increase of the current in difficult welding situation.

Approval: CE to EN 60974-1.
Supply: Single phase 230 volts (±15%).
Fuse rating: 16 amps.
Welding range: 60% duty cycle at 120 amps.
Welding current: 10 -200 amps.
Dimensions: L270 x W140 x H180mm.
Weight: 5.0kg.

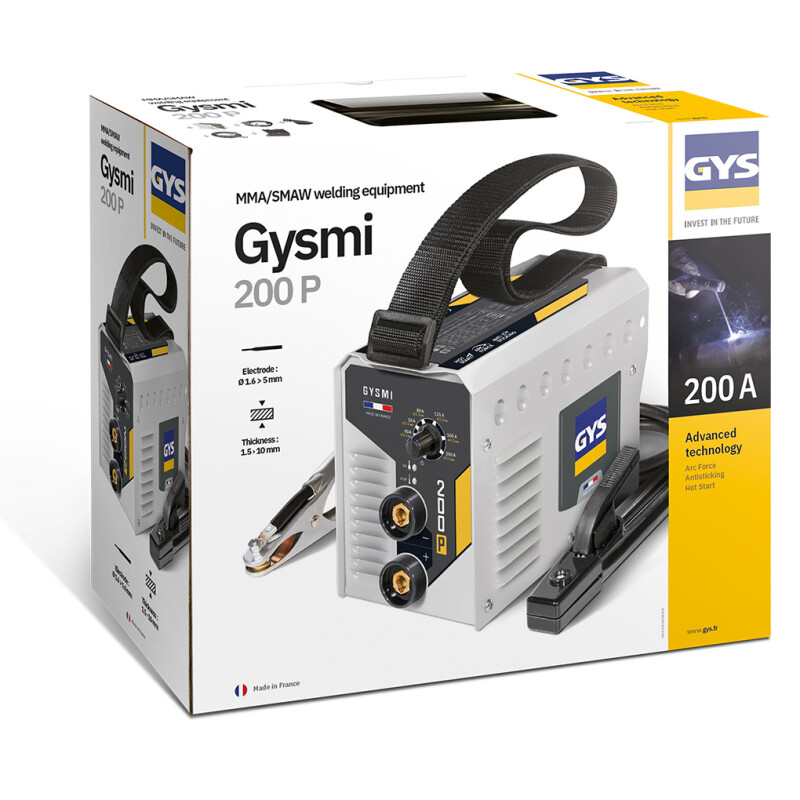

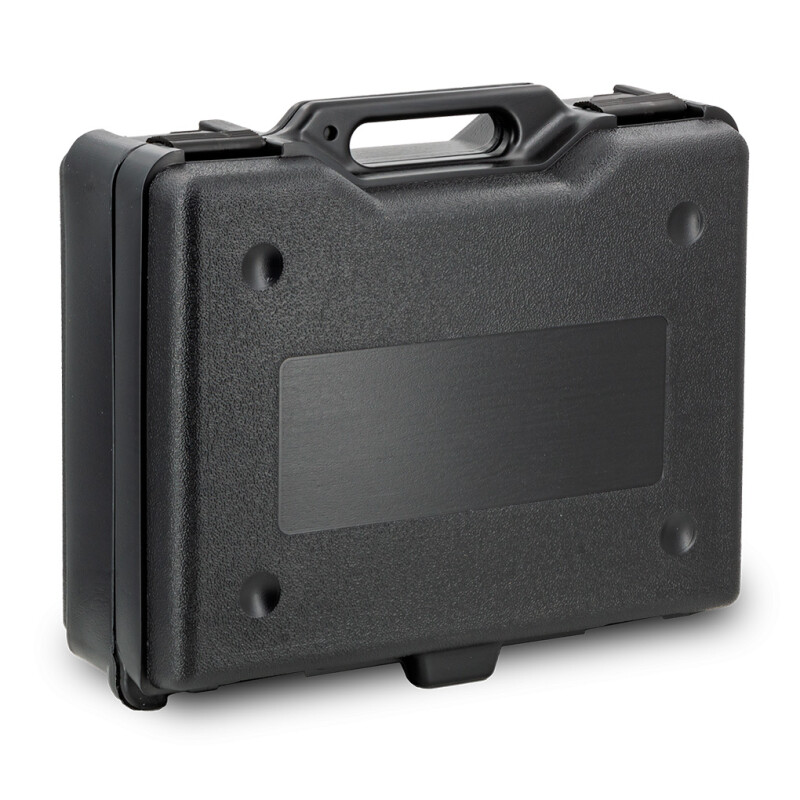

Supplied with electrode holder with 2m cable, earth clamp with 1.6m cables and plastic carry case.
