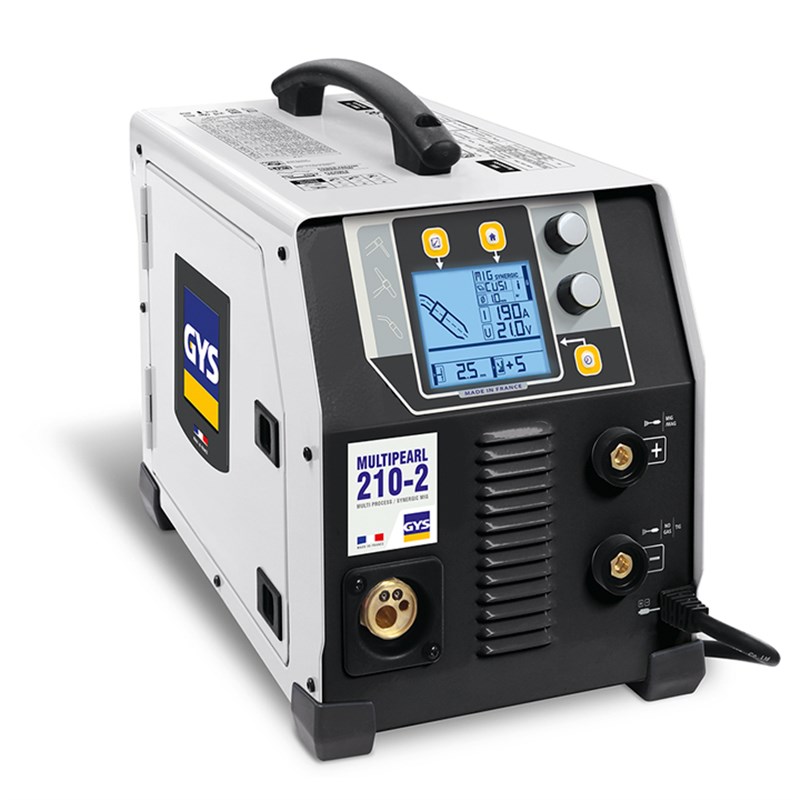

GYS MULTIPEARL 210-2 (1ph) 200A Inverter/MIG Welder c/w electrode holder & 3m MIG torch (MB25)

3 in 1, the MULTIPEARL 210-2, is a multi-process power source capable of performing MIG/MAG (with or without gas), TIG DC and MMA welding, with high precision. It features 9 welding synergies to enable welding in all positions. Versatile, but also equipped with a single-phase power supply with PFC/FV technology, it is the perfect tool in the workshop or on site.

3 WELDING PROCESSES
MIG-MAG
- 2 roller motor: 1kg and 5kg reels.
- Adjustable manually or synergistically.
- SPOT and DELAY functions available.
- Can weld sheets from 0.6 to 6 mm thick.
TIG
- TIG DC welding and TIG Lift ignition with optional TIG EURO torch.
- Adjustable Post Gas and Downslope (arc downslope).
MMA
- Welds different types of coated electrodes up to ø 5mm
(rutile, basic, stainless steel, steel, cast iron).
- Adjustable Hot Start (0 to 100%): facilitates ignition and can be adjusted.
- Arc Force adjustable (0 to 100%): regulates the arc length deviations.
- Antisticking : reduces the risks of the electrode sticking
MIG-MAG SYNERGIES
Automatic calculation of wire speed and voltage according to :
- type & diameter of wire; - thickness to be welded;
- gas used; - welding position.
Manual setting possible:
- wire speed and arc length.

Approval: CE to EN 60974-1.
Supply: Single phase 110V or 230V (+/-15%) generator friendly 9kVA.
Fuse rating: PFC technology enables full range from 13A supply.
Welding range: 20 – 200 amps.
Duty cycle: 60% at 130 amps (MIG).
Welding wire size: 0.6 – 0.8mm.
Reel sizes: 1kg and 5kg.
Dimensions: L450 x W250 x H350mm.
Weight: 16kg.
