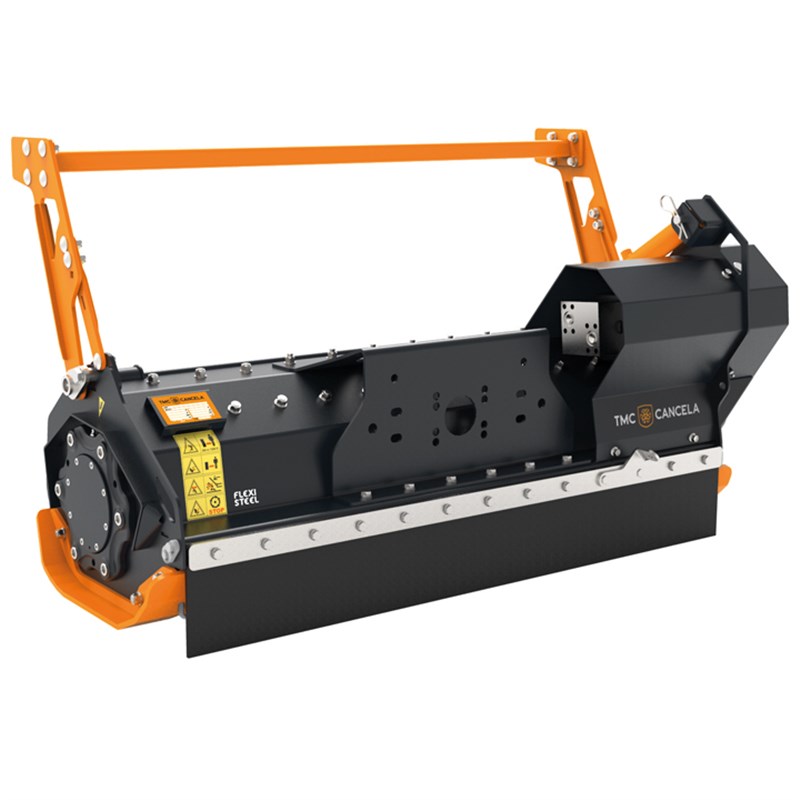

TMC Cancela TLE-150 Hydraulic Mulcher c/w Push Frame - for Remote Controlled Units (70-120 L/min)

• Body built in high strength steel
• 4 chain curtains for front protection
• Sliding side skids

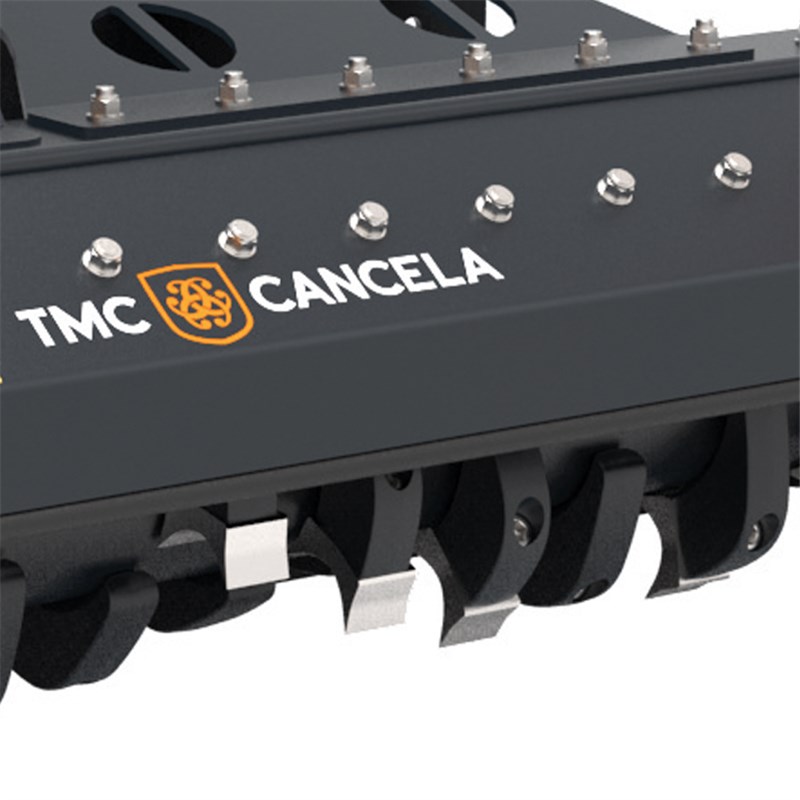

• Fixed teeth rotor set in a helical disposition
• Transmission drive with 4 XPB belts
• Hydraulic piston motor Bosch Rexroth with fixed displacement (28cc) and built-in anti-cavitation valve
• Replaceable counterblades C01
• Base flange for coupling to remote controlled carrier

Technical
Working width (m): 1.50
Total width (m): 1.77
Req. pressure range (min–max): 200–280 Bar
Recommended flow range: 70–120 (ltr/min)
Rotor diameter (mm): 325
No. of hammers (F08+F38): 36+2
Counter blades (C01): 3 replaceable rows
Coupling: Universal coupling plate
Skids: Sliding bolted
Weight (kg): 580

CHARACTERISTICS

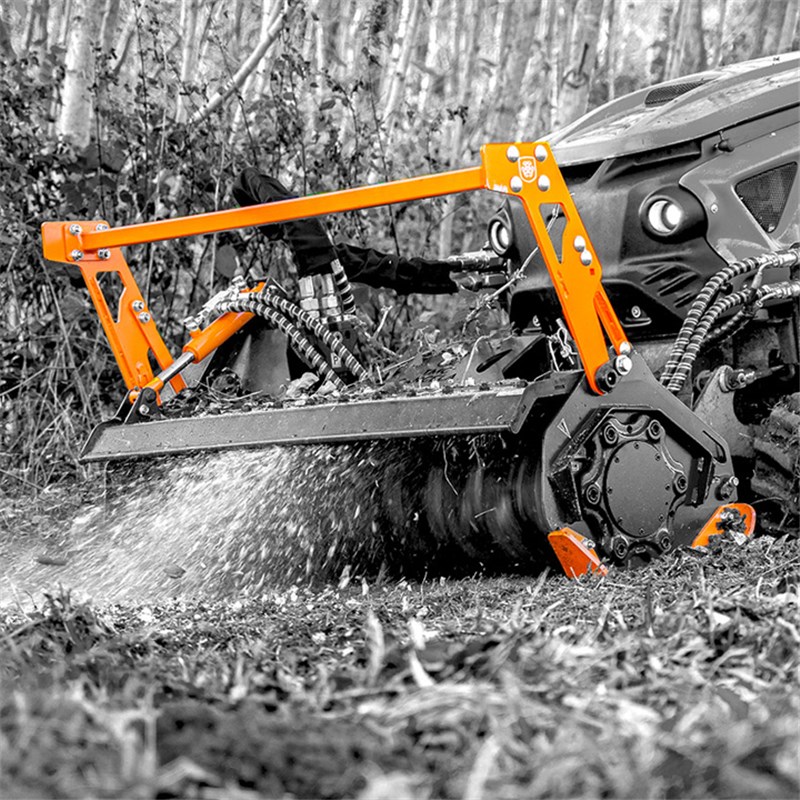

The TLE mulcher is the solution for equipping remote-controlled vehicles and turning them into real forest mulching equipment. Thanks to the fixed tungsten carbide hammers, the robust bearings, a chassis made of HARDOX® and several rows of hardened replaceable counterblades, the equipment will be able to carry out any work related to landscape management. It will be possible to reach corners and spaces that are difficult to access thanks to a very robust and compact design that provides great stability and manoeuvrability to the whole assembly.

The modular connection with different plates adapters facilitates the assembly of TLE in different models of remote-controlled vehicles and medium-low weight compact loaders.
