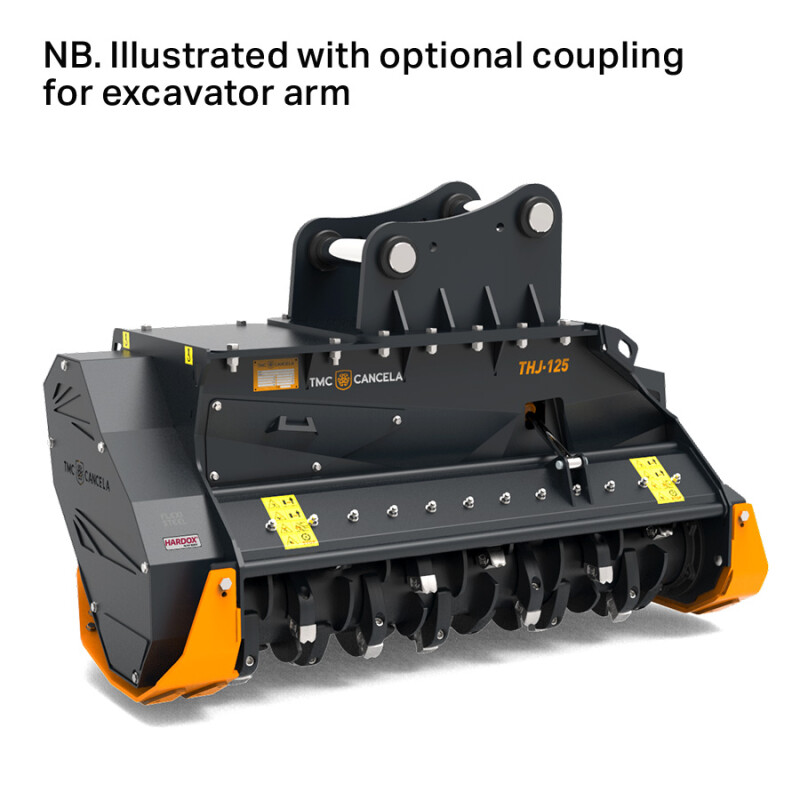

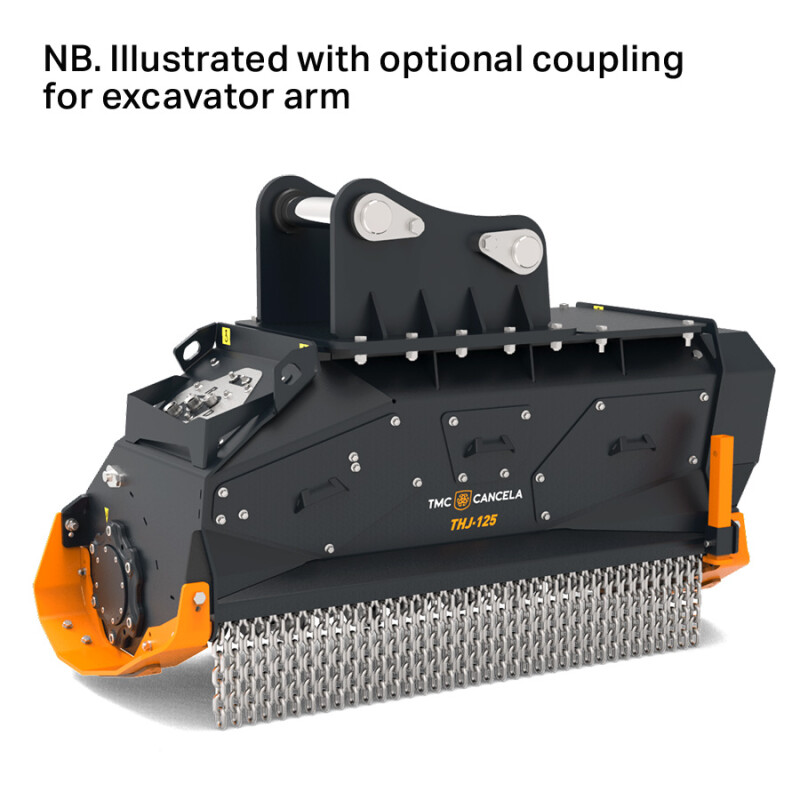

TMC Cancela THJ-125 Hydraulic Mulcher - for 10-16 Tonne Excavators

• Body built in high strength steel
• Double Chain curtain for front protection
• Hydraulic hood with replaceable counterblades for improving material entrance
• Side step system on body of frame sides
• Rotor fitted with fixed hammers in a helical disposition
• Transmission with 5 XPB belts
• Hydraulic piston motor drive Bosch Rexroth with adjustable displacement (40-63cc) and built-in anti-cavitation valve
• Water resistant sliding skids with replaceable soles
• Centralized hydraulic outputs and grease points
• Flange with coupling for excavator (optional)

Technical
Working width (m): 1.25
Total width (m): 1.62
Req excav. weight (min–max): 10-16 tn
Req pressure range (min–max): 280-380 bar
Recommended flow range: 105-170 (ltr/min)
Rotor diameter (mm): 375
No. of hammers (F09+F39): 30+2
Counterblades: 5 replaceable rows
Coupling: Bolted flange
No. of belts (type): 5 (XPB)
Skids: Sliding, bolted (2 position)
Weight (kg): 755

CHARACTERISTICS

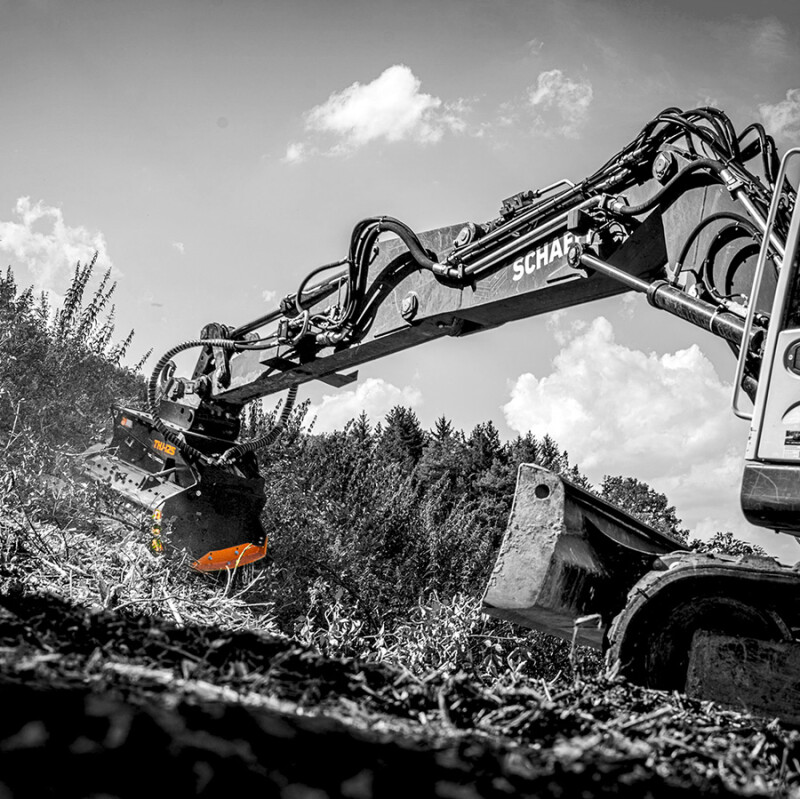

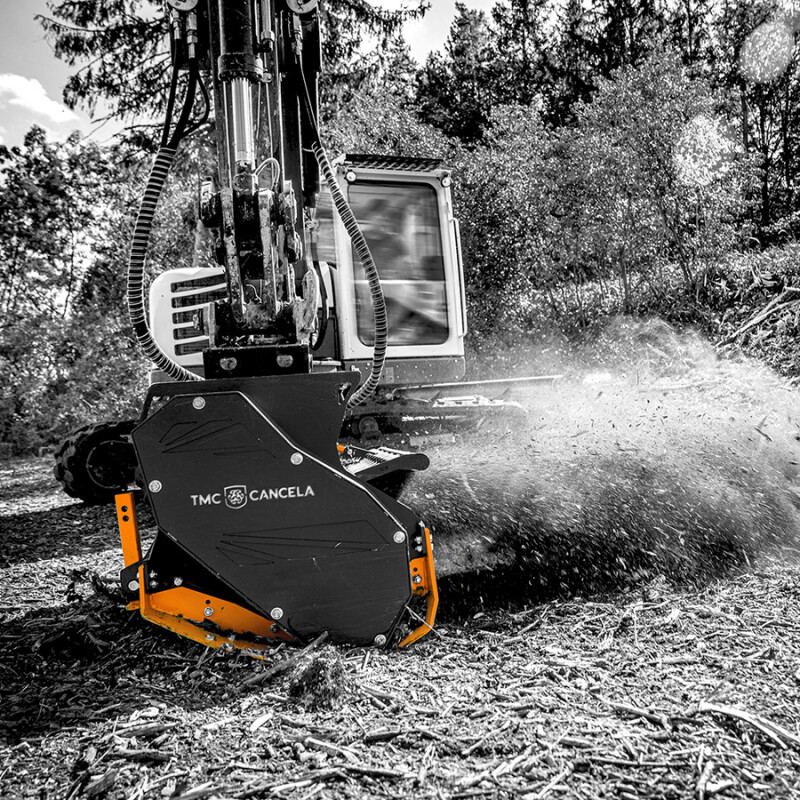

The Hydraulic Forestry Mulchers have been specially designed for working with excavators and retro-spiders. They meet the highest demands of the forestry sector due to the fact that its configuration and design allows them to do any work with a maximum reliability and efficiency.
