Straight 3.5m H/duty Aluminium Loading Ramps - C125.35.410, 1 pair (3,560kg)

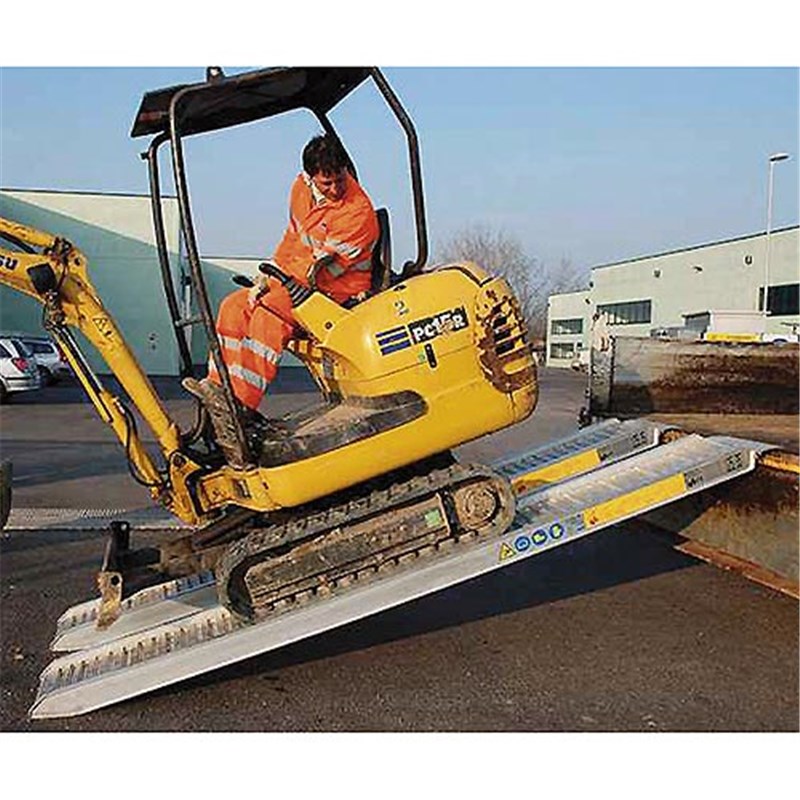

Heavy duty aluminium ramps suitable for loading wheeled or rubber tracked small plant onto trailers or vans or trucks, depending on the height from the truck bed to the ground.

• Tested to 2.1 x rated load
• DEKRA Certified with Certificate
• TUV Certified
• Manufactured from type 6082 grade aluminium

Which Ramp do I need?
1/. Measure the height of the truck or trailer's floor/bed to the ground in mm
2/. Multiply by 3.3, this will give you the ideal ramp length needed (ie. a bed height of 900mm – requires a 3m ramp)
3/. Select the ramp type based on length required and maximum load capacity to suit your application.

Depth: 125 mm
Length: 3500 mm
Width: 410 mm
Weight per ramp: 35 kg
Capacity per pair: 3560 kg
Design: Straight
Connection type: A plate with safety tongue
Tested to 2.1 x rated load
DEKRA Certified with Certificate TUV Certified
Manufactured from type 6082 grade aluminium
Max recommended bed height: 1060 mm
