Hydraulic Top Link, Cat. 3 Q/R CBM Hook/Cat. 3 32mmØ Knuckle, 650-876mm, Supplied c/w Non-return Valve & 800mm Hose Set

Product Code: 27933

Pack quantity : 1

Link copied!

Low stock - less than 10 available to despatch today

DetailsSpecificationTechnical

Hydraulic Top Link, Cat. 3 Q/R CBM Hook/Cat. 3 Knuckle

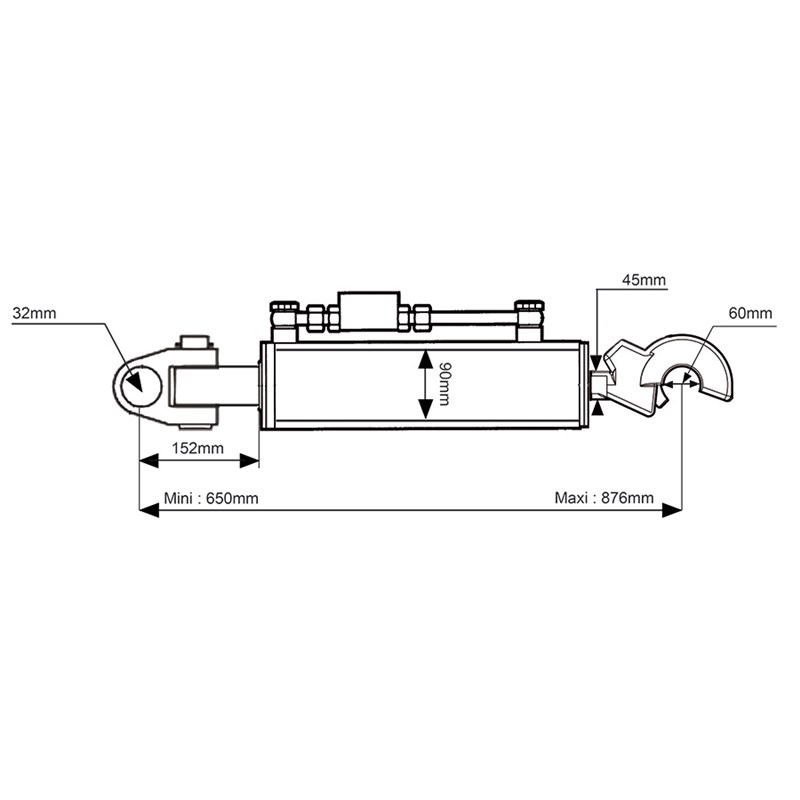

Min. Length: 650mm, Max. Length: 876mm.

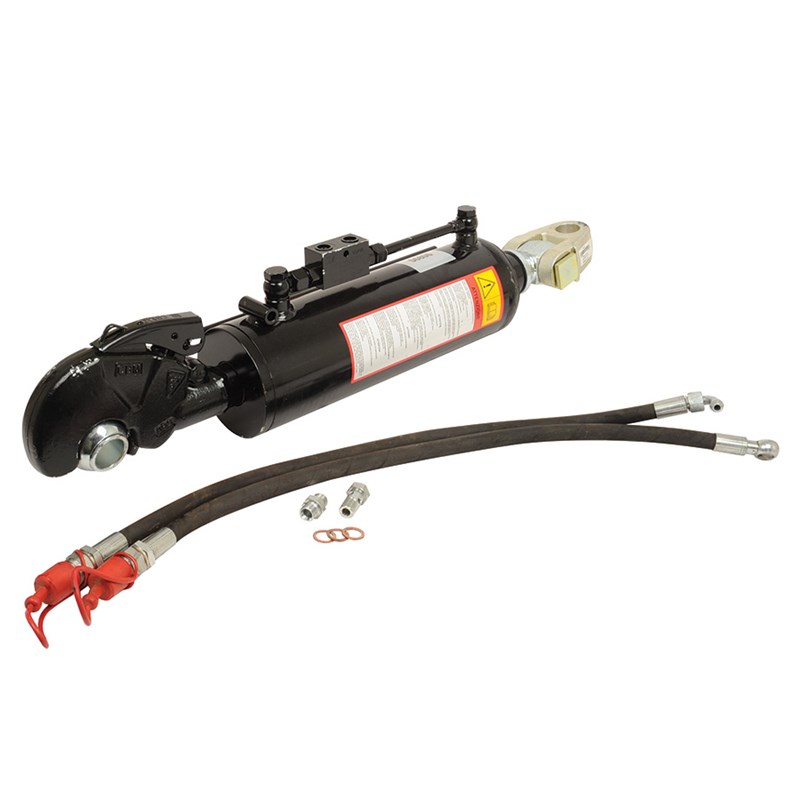

Supplied with: 800mm Hose set, chain & ball, depth rod & marker label with knuckle & pin.
Cylinder ID 90mm / Rod Ø 45mm - Suitable for tractors up to 200hp (147KW).
Lift @180 bar: 8,770 kgs.
Weight: 26.95 kg.

Technical

Supplied with: 800mm Hose set, chain & ball, depth rod & marker label with knuckle & pin.
