HVDS Mk2 Portable - High Voltage Detection System

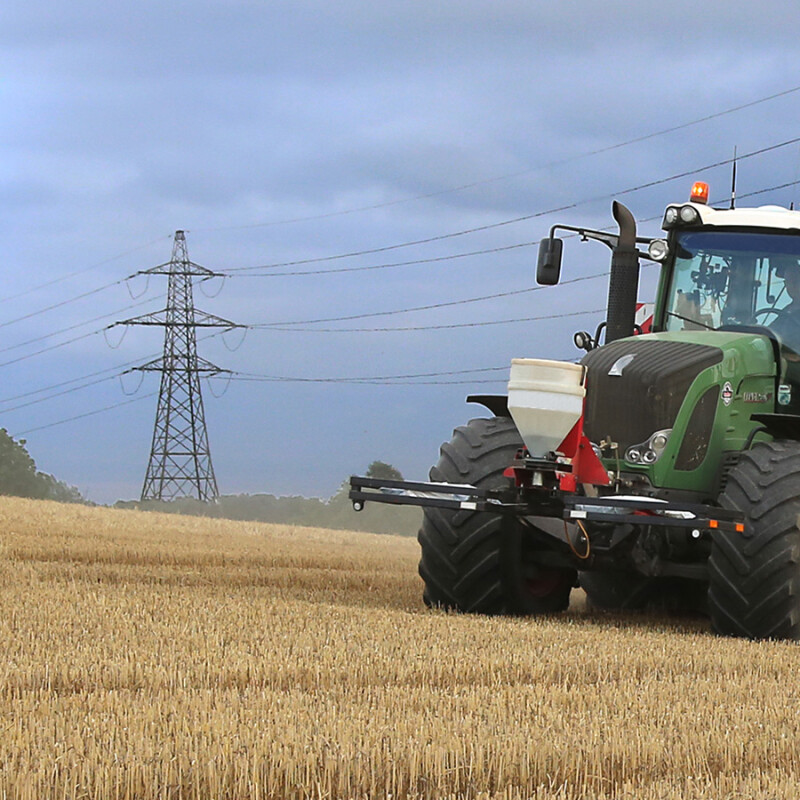

The HVDS Mk2 Portable unit is designed to prevent vehicles and farm machinery with a variable height from coming into contact with high voltage overhead power lines. The system incorporates the latest high voltage detection technology and consists of a cab mounted detection antenna and an in-cab audio/visual warning unit. The system can sense the presence of overhead power cables from up to 100 meters away and warns the vehicle operator of the potential danger of overhead power lines.

Sensitive - Detects the presence of overhead high voltage power lines up to 100m
Easy to use - Audio visual in cab warning
Versatile - Can be used on almost any type of vehicle

• Plug & Play – No user calibration required
• 11-32v DC Operation
• Adjustable sensitivity
• Auxiliary Switching Function – Can be used to switch external devices on alarm
• Auto resetting mute feature
• Proven technology – 1000’s sold worldwide

Kit Includes

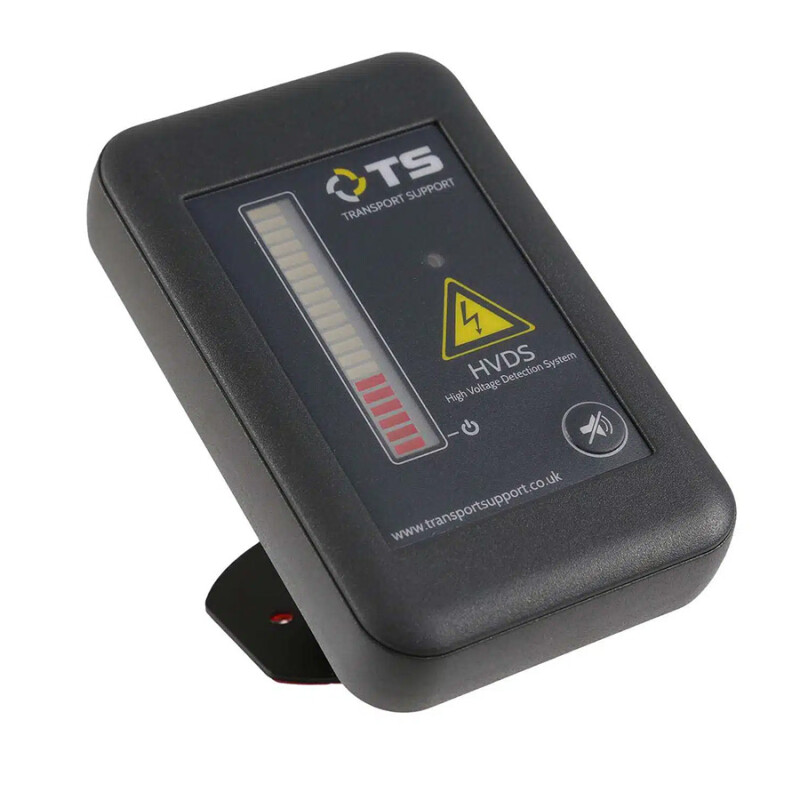

1 x HVDS Detector.
1 x Mounting Bracket.
1 x Power Cable.

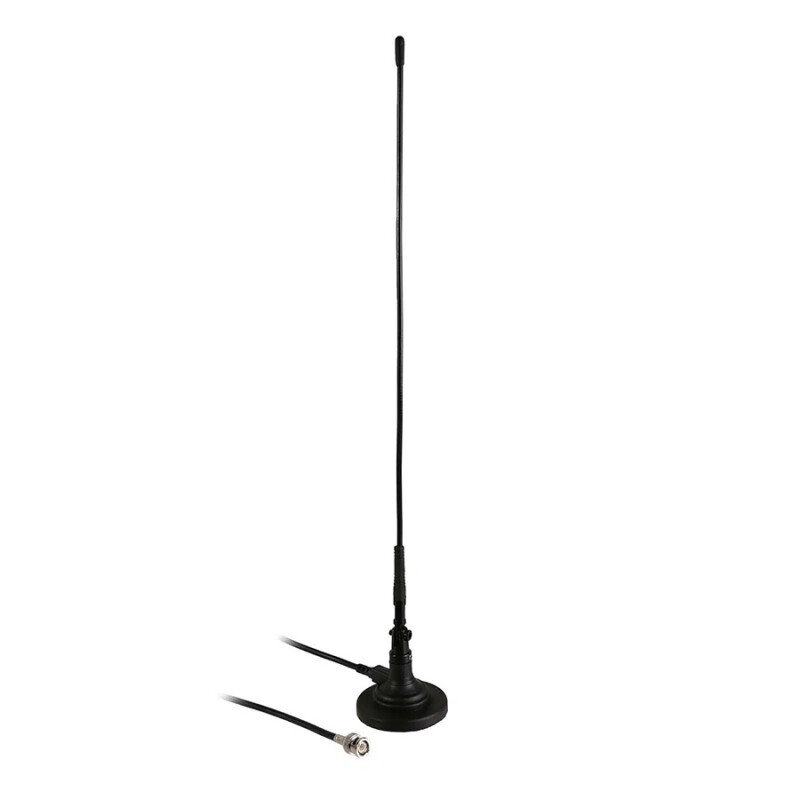

1 x Antenna Rod & Base.
1 x Management Key.
1 x Instruction Manual.

Specification
Operating voltage: 12-24 V DC
Nominal operating current: <150mA
Product size: W 65mm x H 105mm x D 22mm
Product weight: 91g
Nominal operating temperature: -5ºC to +55 ºC
Detection range: Up to 100 meters
Visual warning : Red LED Signal strength meter & High Intensity red flashing LED
Warning tone: High pitch pulsed buzzer approx. 85db
Power indicator: High Intensity red LED
Mute facility: System can be muted once activated. Mute activates for 30 seconds then systems continues to alarm until muted again.
Detection antenna: 235mm (60g)
Approvals: EMC, CE Marked, E11 Type Approved
