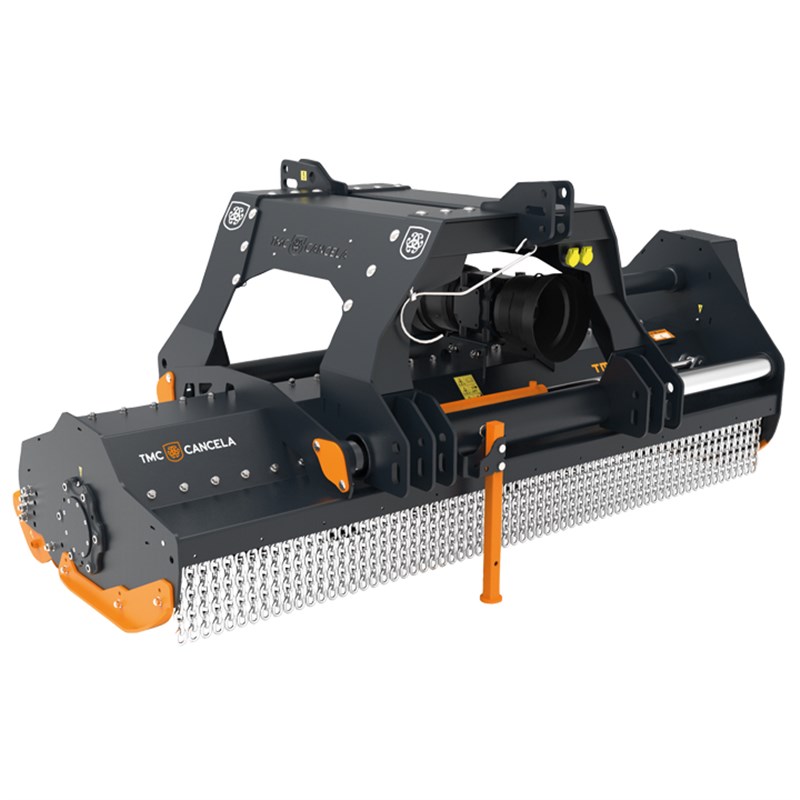

TMC Cancela TMS-280D Front & Rear Mtd. Mulching Topper

Features

• Body with fixed three point linkage – completely built in high strength steel
• Protection at front with chains
• Sliding skids
• Internal rear roller for height adjustment
• Reversible shifting three point linkage with a hydraulic cylinder
• Floating hammers assembled to the rotor with 27mm diameter bolts (Boltop system)
• Transmission with 6 XPB belts and Auto-Tensioning system – for increased belt life and low maintenance
• Gearbox with freewheel with a drive shaft of 1. 3/4" Z6 (through axle system on shifting models)
• Input of 540 rpm – optional 1,000 rpm by inversion of pulleys (DS system)
• Replaceable counterblades – TMC Cancela C01
• Fully CE marked & 1 year manufacturers warranty

Working width (m) 2.8

Total width (m) 3.0

Required input power (cv) 135

Max. allowed power (cv) 200

Rotor/s cutting diameter (mm) 489

Gearbox input speed (rpm) 540 (in option 1.000)

No. of hammers (A18) 28

Counterblades 2 replaceable rows

Linkage category Cat. 2 / Cat. 3

No. of belts – type 6 – XPB

Skids Sliding adjustable (2 positions)

Adjustable height control Skids & Roller

PTO shaft Bondioli type 108

Shifting model weight (kg) 1,667

Hydraulic cylinder stroke (mm) 700

Working reach, hydraulic (mm) 1,417 – 2,082
