TMC Cancela TJP-480 Rear Mtd. Folding Mulching Topper

Product Code: 17254

OEM Code : TJP480 FOLDING

Pack quantity : 1

Link copied!

Out of stock

DetailsSpecification

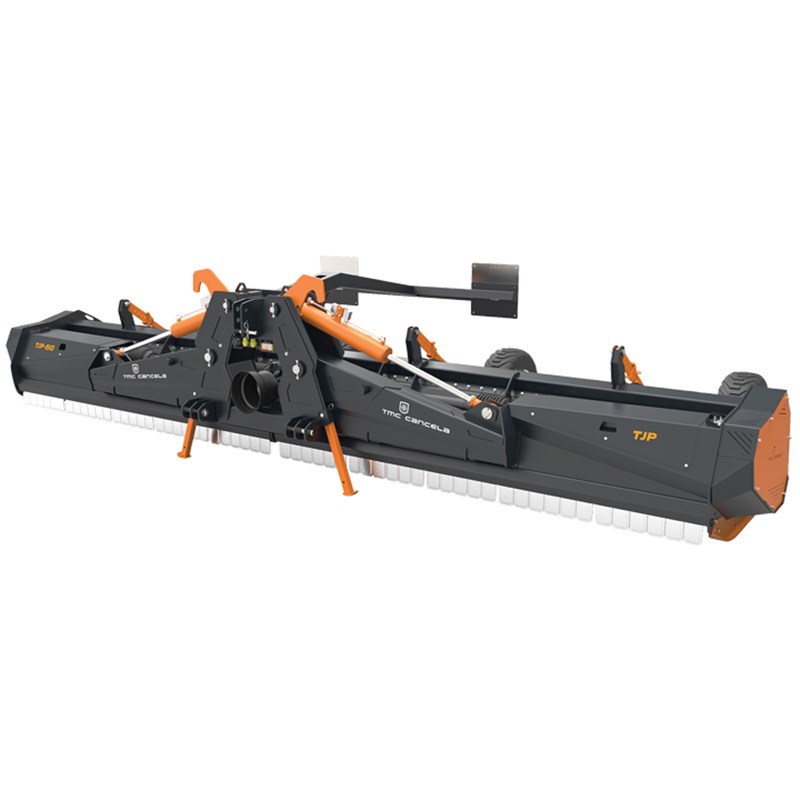

TMC Cancela TJP-480 Rear Mtd. Folding Mulching Topper

Features

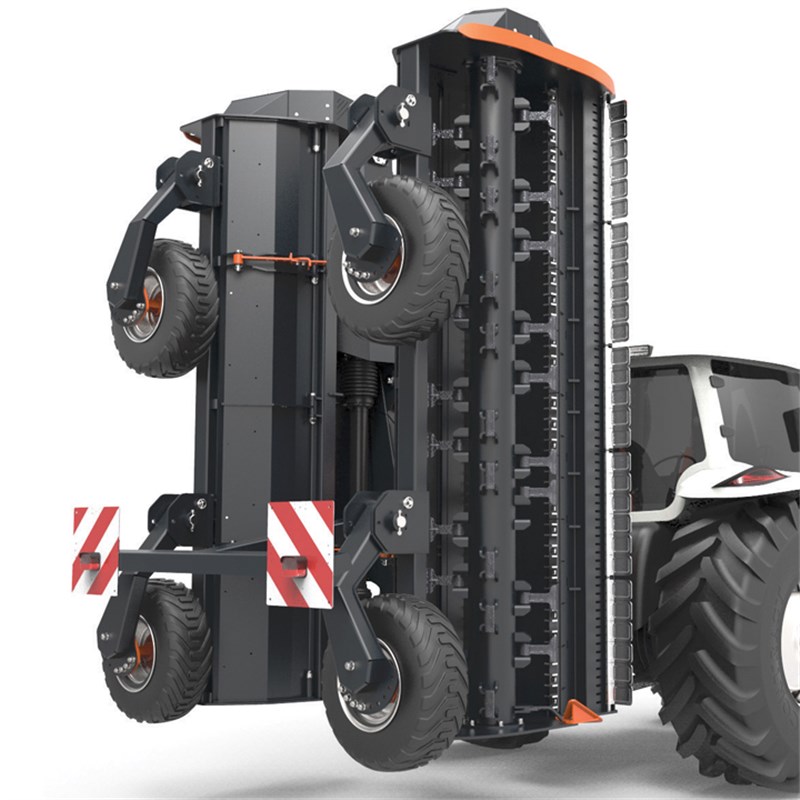

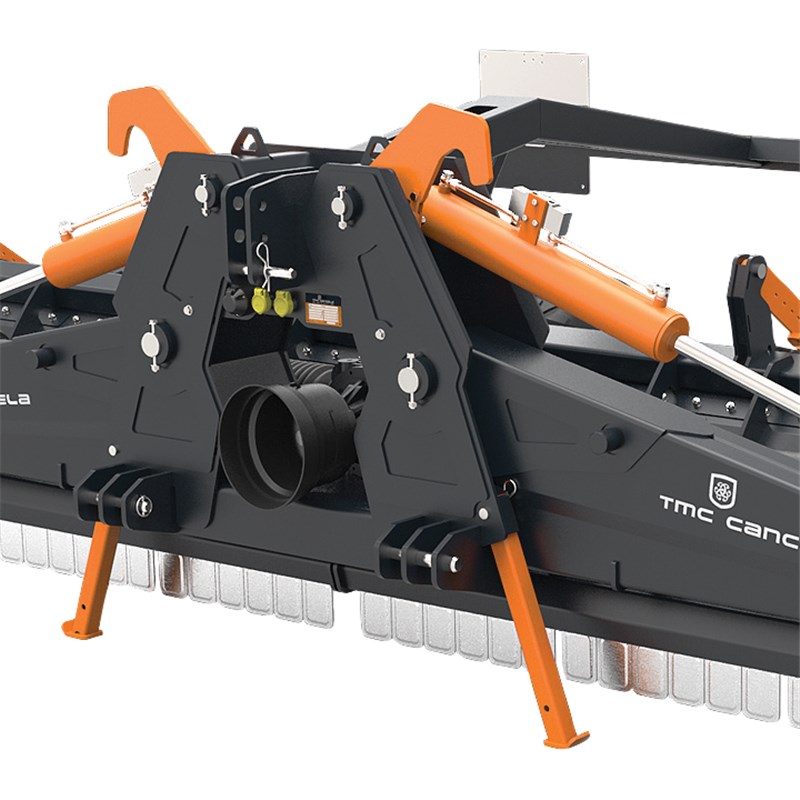

Supporting body (hydraulic folding) and three point linkages made in high strength steel

Individual rear hoods with double mechanical opening and adjustment

Cutting height options with either rollers or swinging wheels

Metal front stone guards

Floating hammers assembled to the rotor with 24 mm diameter bolts

Transmission with 6+6 belts XPB with an easy maintenance tensioning system

Gearbox with freewheel, with an input speed of 1,000 rpm and with a drive shaft of 1. 3/4" Z6

Replaceable counterblades – TMC Cancela C10

Centralised greasing

Hydraulic transport safety lock

Side transmission fully protected

Replaceable internal shell

Fully CE marked & 1 year manufacturers warranty

TechnicalWorking width (m) 4.8Total width (m) 5.22Required input power (cv) 160Max. allowed power (cv) 270Rotor/s cutting diameter (mm) 645Gearbox input speed (rpm) 1000No. of hammers (standard) A10 + A13 60 + 2No. of blades (option) A07 + A13 (120 + 60) +2Counterblades 2 replaceable rowsLinkage category Cat. 2 / Cat. 3No. of belts – type 6 + 6 – XPBSkids Adjustable bolted (2 positions)Adjustable height control Roller (3 positions) Skids (Various)PTO shaft Bondioli type 108Weight (kg) 2850Transport width (m) 2.46
