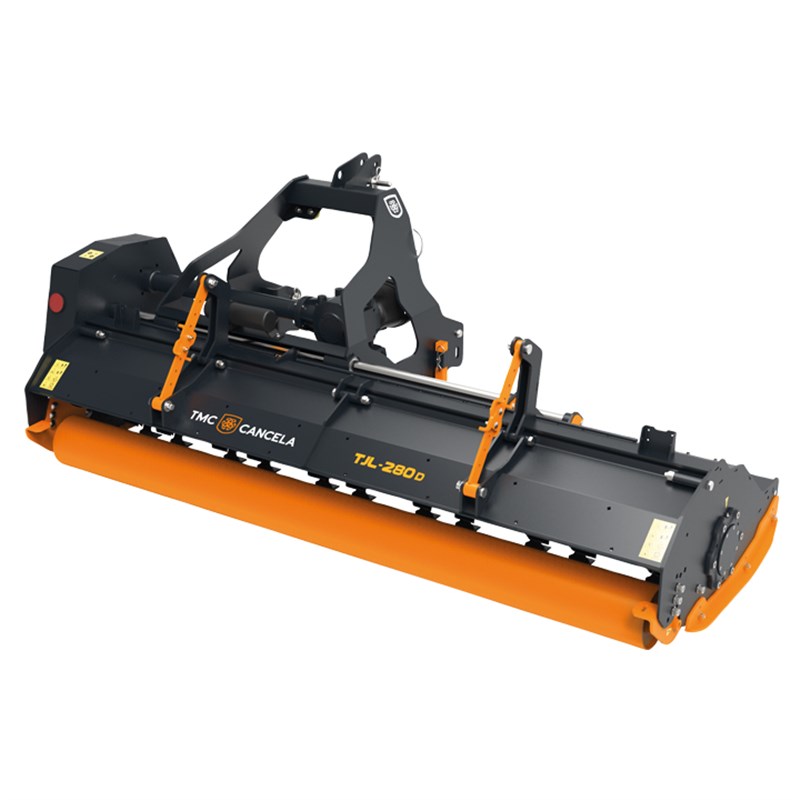

TMC Cancela TJL-280 Rear Mtd. Mulching Topper

Features

• Body built in high strength steel with fixed three point linkage (2 positions)
• Rear hood with double mechanical adjustment
• Internal rear roller for height adjustment
• Shifting three point linkage with a hydraulic cylinder
• Metal front stone guards
• Floating hammers assembled to the rotor with 20 mm diameter bolts
• Transmission with 6 XPB belts and Auto-Tensioning system – for increased belt life and low maintenance
• Gearbox with freewheel with a drive shaft of 1. 3/4" Z6
• Input of 540 rpm – optional 1,000 rpm by inversion of pulleys (DS system)
• Replaceable counterblades – TMC Cancela C01
• Fully CE marked & 1 year manufacturers warranty

Working width (m) 2.8

Total width (m) 3.06

Required input power (cv) 120

Max. allowed power (cv) 200

Rotor cutting diameter (mm) 463.1

Gearbox input speed (rpm) 540 (in option 1.000)

No. of hammers A01 44

Counterblades 2 replaceable rows

Linkage category Cat. 2

No. of belts – type 6 – XPB

Skids Fix bolted (2 position)

Adjustable height control Skids & Roller (2 positions)

PTO shaft Bondioli type 108

Weight (kg) 1230

Hydraulic cylinder stroke (mm) 600

Working reach Hydraulic (mm) 1364.5–2035.5
