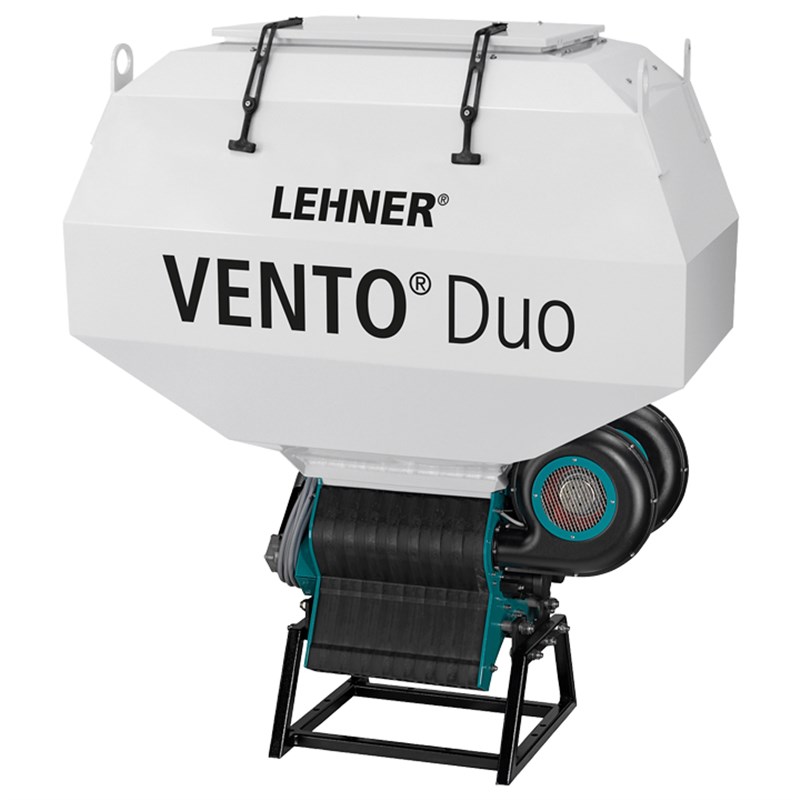

VENTO® Duo 16 Outlet Air Seeder (500 ltr - 50 / 50 split)

Pneumatic hose spreader with two-chamber system for simultaneously spreading large legumes and small seed crops over a width of  up to 6m.

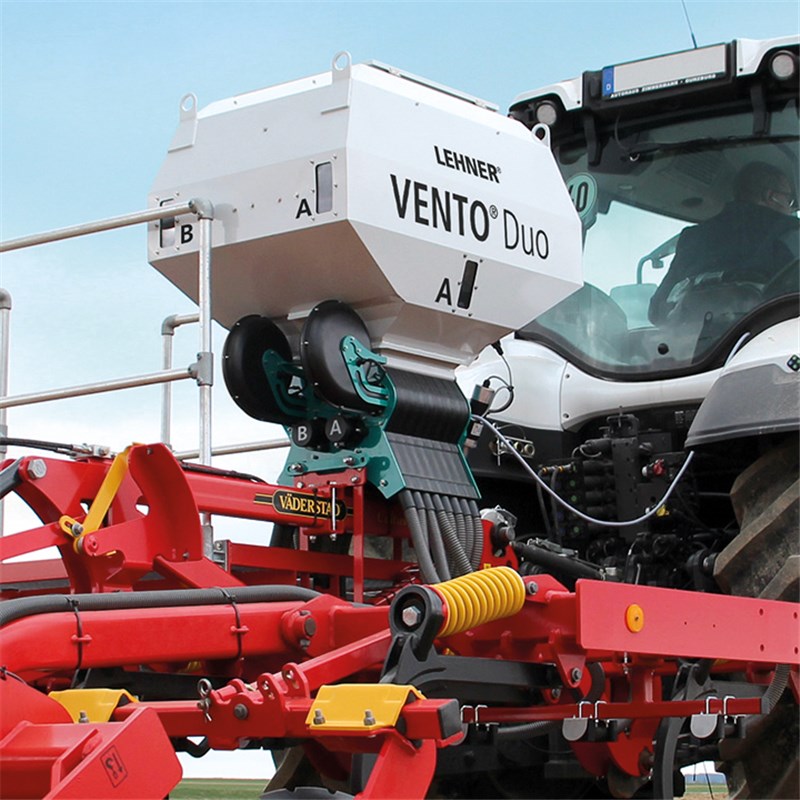

The VENTO® Duo is a pneumatic 12 volt hose spreader with two-chamber system, which was developed for simultaneously spreading two types of seed at different sowing locations or soil depths. For example, in a single operation, large legumes can be sown directly into the soil while small seed crops are dispensed at a different depth and location. All functions and settings can be managed conveniently using the VENTO II control panel, and changed while you are on the move. Working widths from 1–6m can be achieved, depending on the attached implement and hose routing.

VENTO® Duo Benefits:

• 2 x 12 volt high-powered fan and separately controlled rotary feeder shafts
• 500 litre hopper available with a 50 / 50 or 65 / 35 split

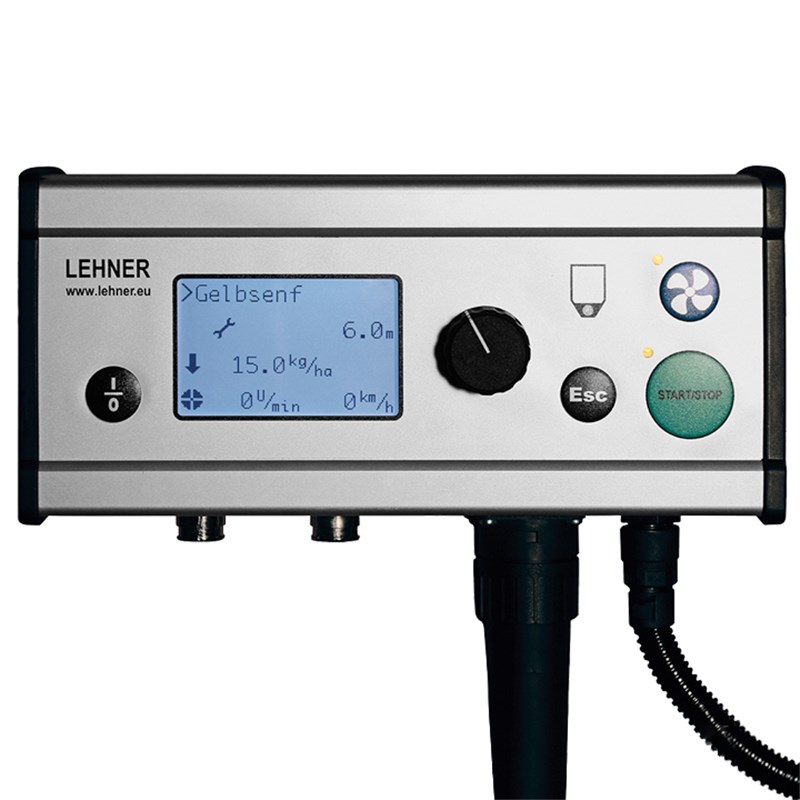

• Control panel with 3.3 inch graphic display
• Speed-dependent dosing and headland management system via 7-pin signal socket as standard

Also included as standard:

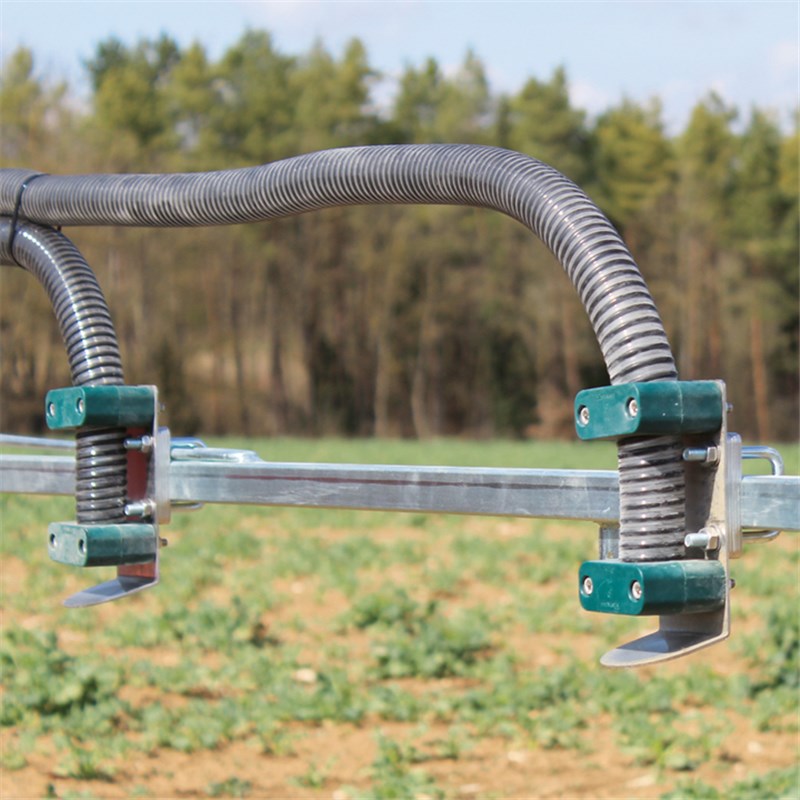

– 16 baffle plates with U-brackets for mounting

– 2 rotary feeder shafts (2 x 5.0ml, blue/outlet) plus rotary feeder set

– LEHNER Superflex hose (50m)

– 2 calibration bags and scale for calibration tests

– Battery cable 6mm2 (6m); control cable (6m)

– Transport and mounting frame

Hopper capacity (Litres): 500 ltr - 50 / 50 split
Hose outlets: 16
Dimensions (L x W x H) mm: 1155 x 755 x 1472
No of fans / spreading width: 2x / up to 6m
Weight: 186 kg
Total power consumption: max. 45 A
Motor power consumption: 10 A
Operating/storage temperature: -10 to +50 °C
Battery cable / control cable: 6m / 6m
