TMC Cancela THB-125 Hydraulic Mulcher for 15–20 Tonne Excavators

Product Code: 17384
OEM Code : THB125
Pack quantity : 1
Link copied!
Low stock - less than 10 available to despatch today
TMC Cancela THB-125 Hydraulic Mulcher for 15–20 Tonne Excavators
  • Body built in high strength steel
  • Hydraulic hood for improving material entrance, with replaceable counterblades
  • Fixed teeth rotor set in a helical disposition
  • Hydraulic piston motor drive with fixed displacement (63cc) Bosch Rexroth with anti-cavitation valve
  • Transmission with 6 XPB belts
  • 4 Chain curtain and side rubbers for front protection

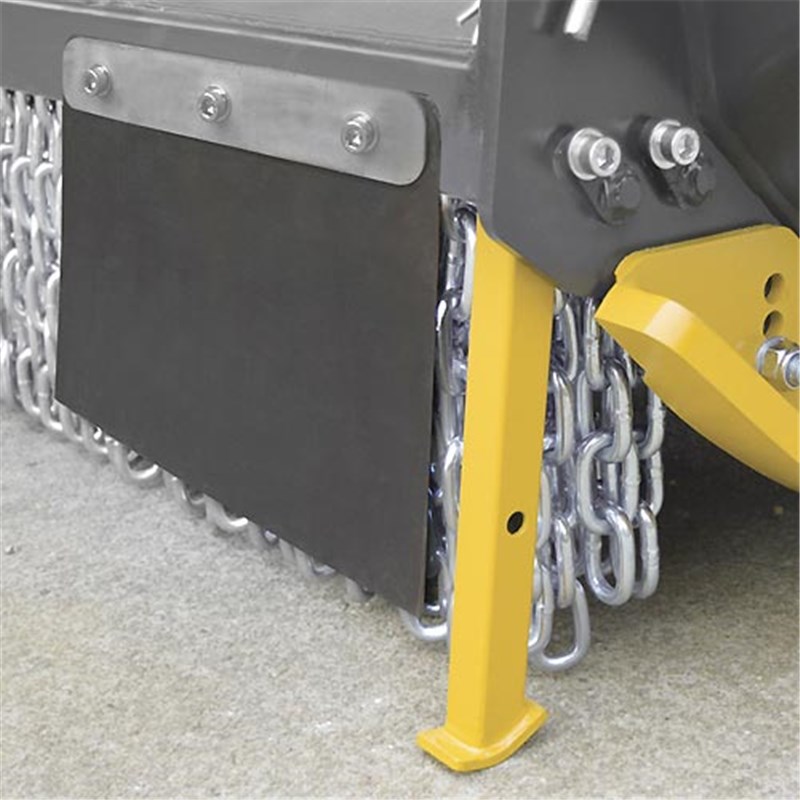

  • Bolted side skids with 3 height positions

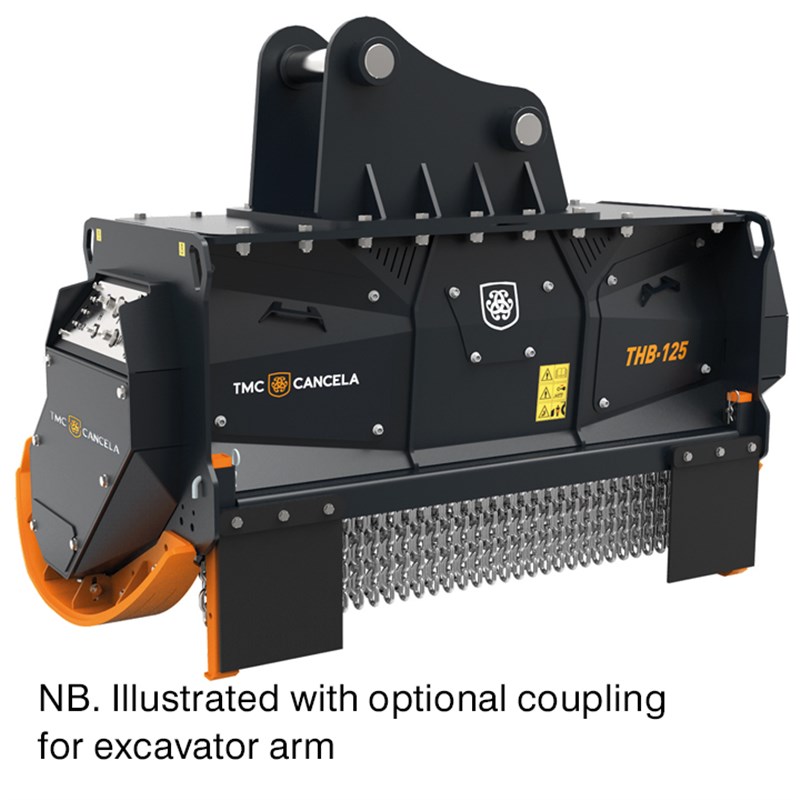

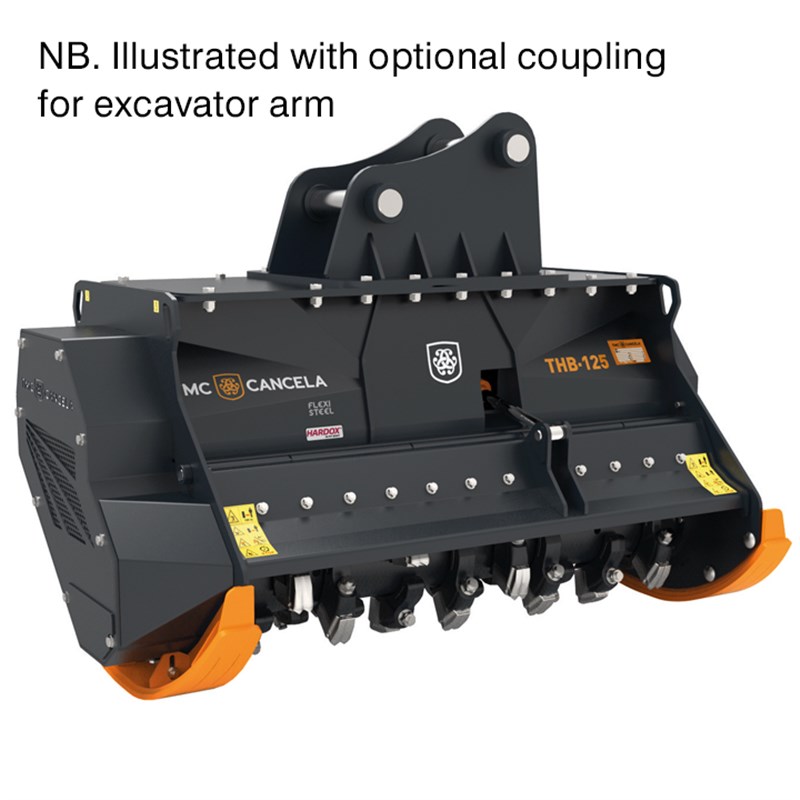

  • Flange with coupling for excavator (optional)
Custom excavator bracket is available separately, as a special order, please call to discuss your requirements.*NB. Hydraulic hoses/connectors to excavator not included.

Technical
Working width (m): 1.25
Total width (m): 1.62
Req excav. weight (min–max): 12–20 tn
Req pressure range (min–max): 180–280 / 300 bar**
Recommended flow range: 115–170 (ltr/min)
Rotor diameter (mm): 413
No. of hammers (F19+F20): 28+2
Counterblades: 2 repl. rows, 1 fixed row
Coupling: Bolted flange
No. of belts (type): 6 (XPB)
Skids: Sliding, bolted
Weight (kg): 1,050
** Max. pressure for motors with fixed displacement
