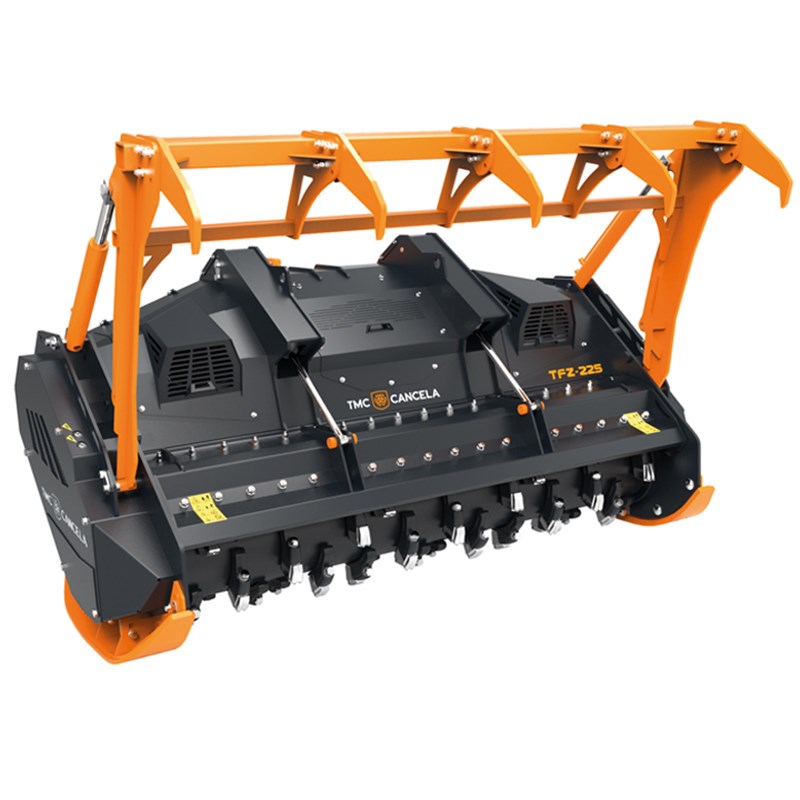

TMC Cancela TFZ-225 Forestry Mulcher c/w Hydraulic Push Frame & Turbo Clutch Kit

TMC Cancela forestry mulching solutions – Built for the toughest forestry environment

These machines are specially designed for mulching branches and low trees, including remaining stumps after felling trees; producing a very high degree of mulching, often to sawdust. Engineered with high specification build quality, utilising high strength steel and incorporating cutting edge technology to produce long lasting replaceable hammers with carbide tips, designed and patented by TMC CANCELA.

Features

• Cutting dia. 500mm, multi-purpose, stump or heavy teeth
• Body built in high strength steel, front specially designed for intake of material
• 4 Chain curtain for front protection, plus 2 chain curtain extra protection in the centre
• Hydraulic top-link system giving permanent alignment to gearbox and PTO
• Hydraulic hood with super finish system
• Sidestep system on body sides
• Side skids with 2 height positions and side protection
• Fixed teeth rotor set in a helical disposition, rotor also having replaceable shafts system
• Gearbox with built in free-wheel, input of 1000 rpm and a heavy duty input shaft of 1.3/4" Z6
• Reinforced PTO shaft
• Transmission drive with 12 XPB belts and ESB system
• Hammers with carbide tips and choice of different configurations – 3 carbide tip teeth (F05 & F13) are standard
• Fully CE marked & 1 year manufacturer’s warranty

Technical Features
Working width (m): 2.25
Total width (m): 2.74
Required input power (cv): 180
Max. allowed power (cv): 250
Gearbox input speed (rpm): 1000
Rotor diameter (mm): 575.5
No. of hammers: 54+2
Counter blades: 1 Fixed row, 4 replaceable rows
Linkage category: Cat. 3 with fast coupling system
Skids: Adjustable height (2 positions)
PTO shaft: Bondioli SH Type
Weight (kg): 3.004
