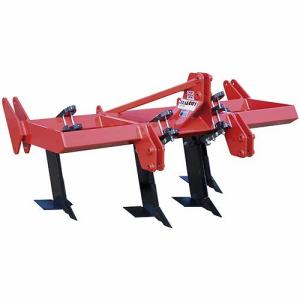

3 Leg Flatlift (2.85m) machine only

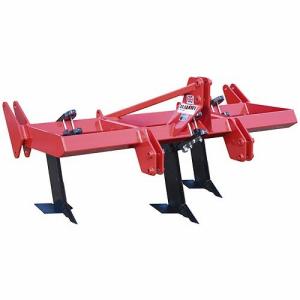

The FLATLIFT«M,13[Reg]» is packed with features designed to make each machine efficient to run and effective in the field, altogether a truly profitable investment.

• The Flatlift’s unique angled swivel hinge reduces draft and damage from obstructions and results in very little wear
• Hinge pin grease nipples for easy lubrication
• Heavy duty headstock and lower linkage with notched bushes, to prevent linkage hole elongation
• Headstock reinforcement beams for increased strength
• Points and shins fitted by roll pin, making replacement quick and easy
• Legs are manufactured from heat treated boron steel for long life
• Hardened shear bolt bushes are fitted to leg and hinge for clean break protection and quick, easy replacement
• Cultivates up to 43cm (17") in depth

The FLATLIFT® machine can be fitted with a range of options suited to a variety of grassland and arable applications for increased choice and flexibility: «M,1[Bullet]» Spiked packer roller - for depth control and consolidation «M,1[Bullet]» Single pass cultivation tool bar - to reduce field operations «M,1[Bullet]» Seeding unit - ideal for cost effective seed placement «M,1[Bullet]» Hydraulic depth control - allows depth control from the cab «M,1[Bullet]» Depth wheels - for depth control if packer is not used «M,1[Bullet]» Fluted discs - ideal for grassland or in heavy trash «M,1[Bullet]» Mole drainer leg - converts the Flatlift in to a mole drainer

Linkage: Dual category 2 / 3. Frame width: 2.85 metres using 150 x 150 x 10mm box section steel. Weight: 638kg (3 leg).
