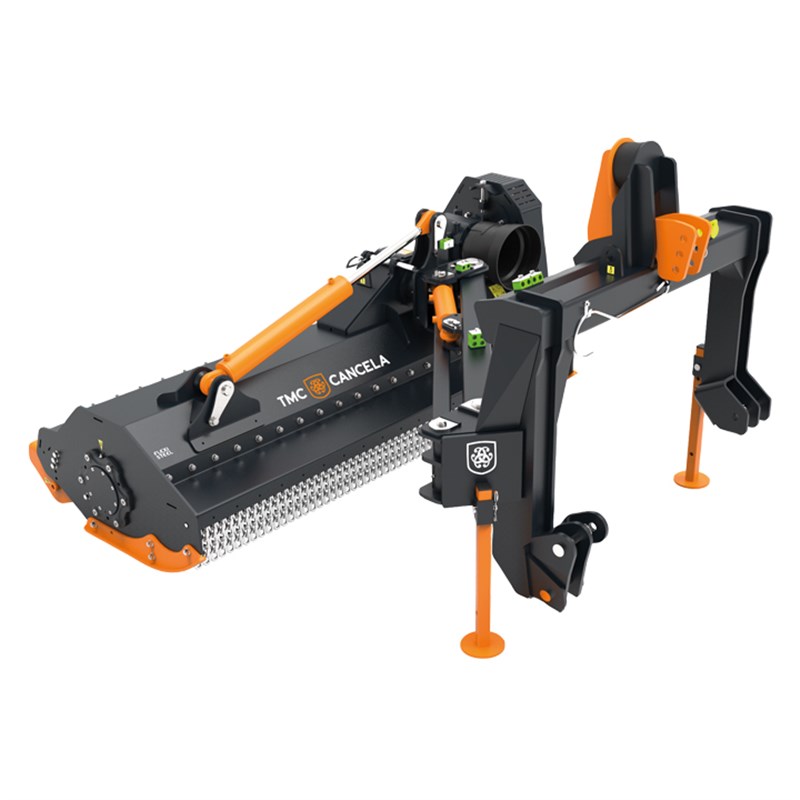

TMC Cancela TDR-220 Right Hand Offset Rear Mtd. Mulching Topper

Features

• Body built in high strength steel
• Three point linkage with parallelogram device for displacement and with a mechanical safety device
• Protection at front with chains
• Float device on three point linkage to control ground adjustment as well as impacts during transport
• Pneumatic shock-absorber for deployment
• Internal rear roller for height adjustment with protection skids
• Floating hammers assembled to the rotor with 27 mm diameter bolts (Boltop system)
• Transmission with 6 belts
• Gearbox with free wheel with a drive shaft of 1. 3/4" Z6
• Input of 540 rpm. In option 1.000 rpm by inversion of pulleys
• Replaceable counterblades TMC Cancela model C01
• Fully CE marked & 1 year manufacturers warranty

Working width (m) 2.2

Total width (m) 2.45

Required input power (cv) 130

Max. allowed power (cv) 200

Rotor cutting diameter (mm) 485

Gearbox input speed (rpm) 540 (optional 1,000)

No. of hammers (A18) 22

Counterblades 2 replaceable rows +1 fixed row

Linkage category Cat. 2

No. of belts – type 6 – XPB

Skids Bolted (fixed position)

Adjustable height control Rear Roller

PTO shaft Bondioli type 108

Weight (kg) 1,262

Hydraulic cylinder stroke (mm) 400

Working reach Hydraulic (mm) 892–2,983
